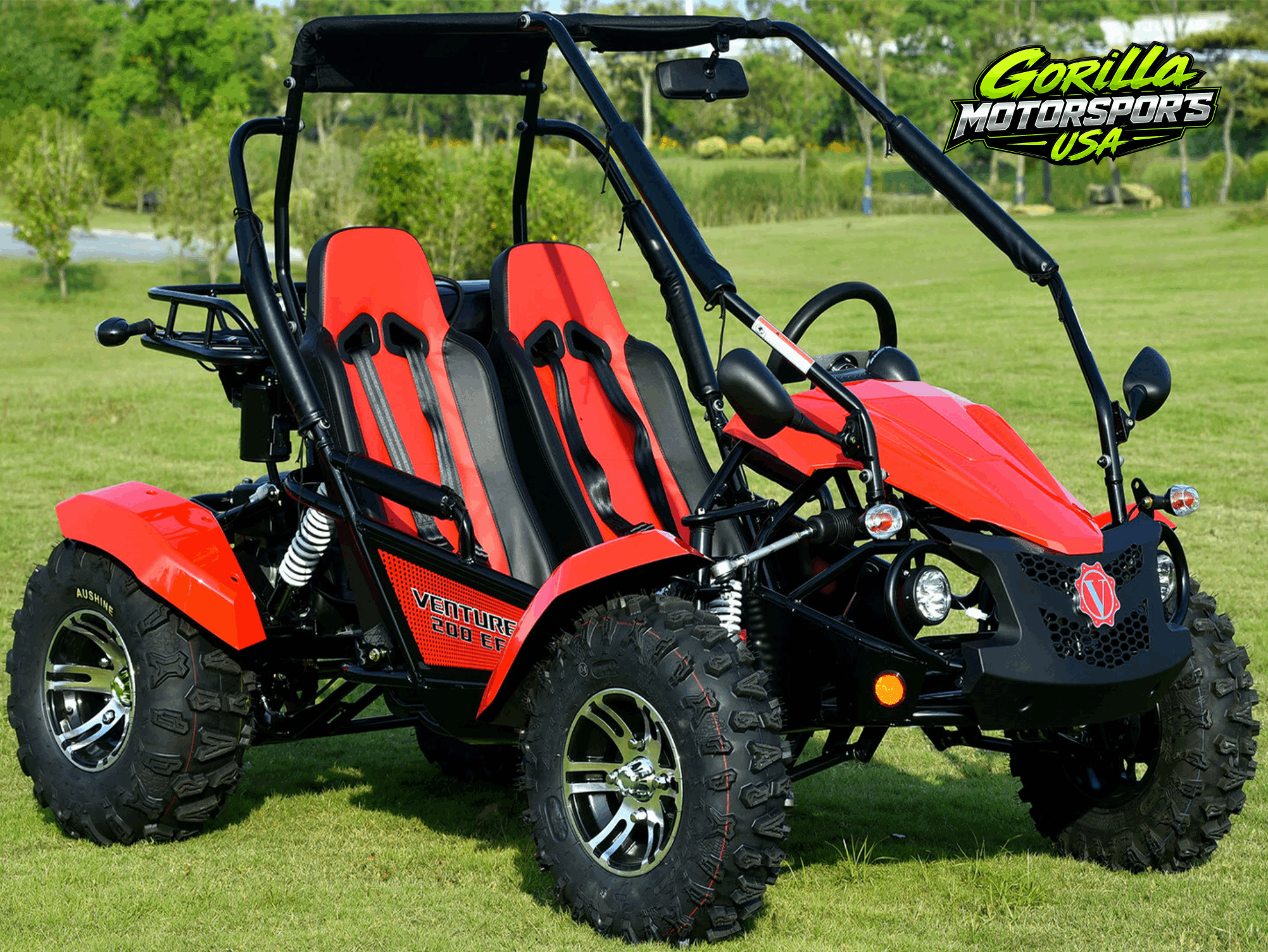

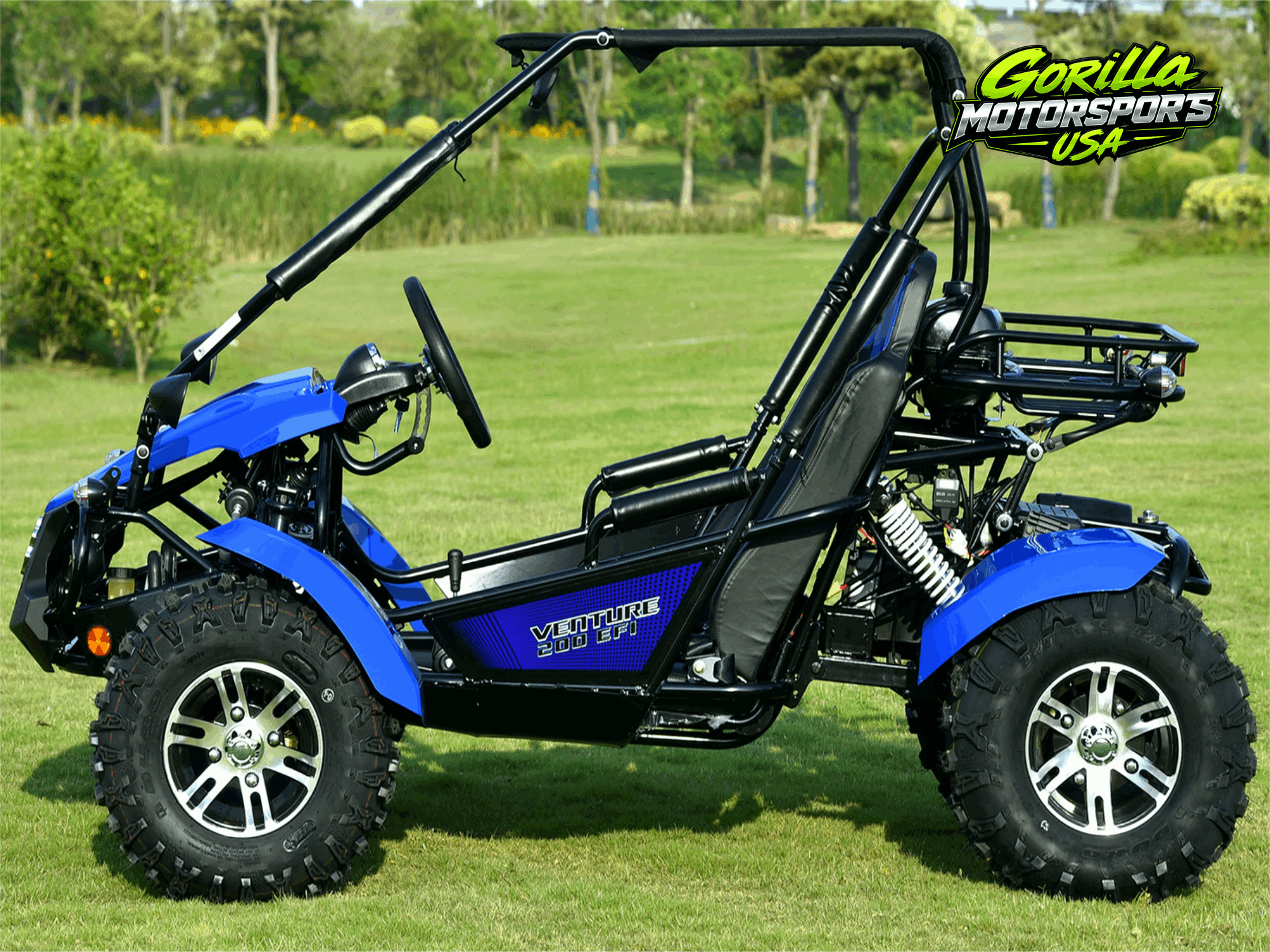

200CC (EFI) GOKART
Vehicle
Overall Length 89.8 in. (2281mm)
Overall Width 62.5 in. (1588mm)
Overall Height 57.5 in.(1460mm)
Front Tire 19×7-8
Rear Tire 22×10-10
Wheelbase 60.6 in.(1540mm)
Min. ground clearance 2.8 inch (71.1mm)
Dry Weigh 529lbs (240kg)
Front Suspension Independent Mcpherson
Rear Suspension, Drag arm suspension
Front Brake Ventilated Hydraulic DIsc
Rear Brake Ventilated Hydraulic DIsc
Fuel Tank Capacity 2.3gal (8.5L)
Battery 12V 9Ah
Maximum Speed 38mile (60km/h)
Engine
Engine Type Four-Sroke, Single Cylinder
Displacement 168.9 cc
Bore & Stroke 61 × 57.8 mm
Compression Ratio 9.2:1
Fuel System Electronic Fuel Injection (EFI)
Ignition Electronic Control Unit (ECU)
Transmission Automatic F-N-R
Drive Train CVT belt, Chain drive
Cooling Air cooling
Maximum power (Kw /r/min) 8.3KW/8000RPM
Maximum Torque (Nm /r/min) 11Nm/6000RPM
